hree half-bridge gate drivers

Can drive 3 high side and 3 low side N-channel MOSFET (NMOS)

Intelligent gate drive architecture

Adjustable conversion rate control

10mA to 1A peak pull current

20mA to 2A peak perfusion current

Integrated gate driver power supply

Supports 100% PWM duty cycle

High side charge pump

Low side linear voltage regulator

6V to 60V operating voltage range

Optional integrated step-down voltage regulator

LMR16006X SIMPLE SWITCHER ®

4V to 60V operating voltage range

0.8V to 60V, 600mA output capacity

Three optional integrated Current Detection amplifiers (CSA)

Adjustable gain (5, 10, 20, 40 V/V)

Bidirectional or unidirectional support

SPI and hardware interface are provided

6X, 3X, 1X and independent PWM modes

Supports 1.8V, 3.3V, and 5V logical inputs

Low power sleep mode (12µA)

3.3V, 30mA linear voltage regulator

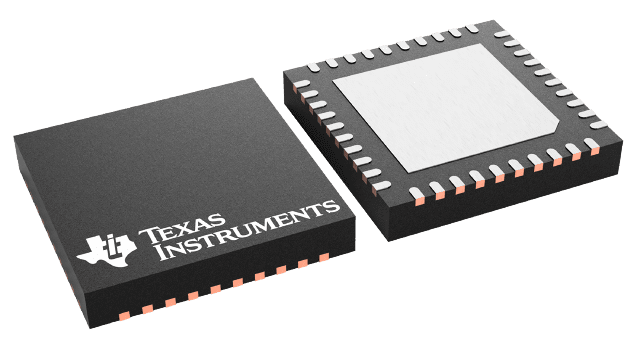

Compact QFN package and size

High efficiency system design using power block

Integrated protection feature

VM Undervoltage latching (UVLO)

Charge Pump undervoltage (CPUV)

MOSFET Overcurrent Protection (OCP)

Gate Driver Failure (GDF)

Heat Warning and Heat Off (OTW/OTSD)

Fault Status Indicator (nFAULT)
