TPS40170RGYR

PDF下载

详细信息

Wide Input Voltage Range from 4.5 V to 60 V
600 mV Reference Voltage with 1% Accuracy
Programmable UVLO and Hysteresis
Voltage Mode Control With Voltage Feed Forward
Programmable Frequency Between 100 kHz and 600 kHz
Bi-directional -Frequency Synchronization With Master/Slave Option
Low-side FET Sensing Overcurrent Protection and High-Side FET Sensing Short-Circuit Protection With Integrated Thermal Compensation
Programmable Closed Loop Soft-Start
Supports Pre-Biased Outputs
Thermal Shutdown at 165°C with Hysteresis
Voltage Tracking
Powergood
ENABLE with 1-µA Low Current Shutdown
8.0-V and 3.3-V LDO Output
Integrated Bootstrap Diode

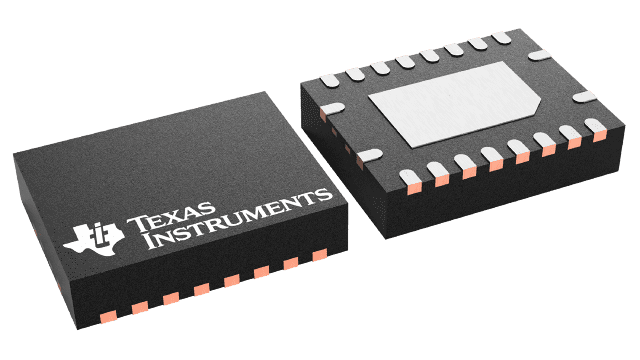

20-Pin 3.5 mm × 4.5 mm VQFN (RGY) Package
Create a Custom Design with WEBENCH Tools
