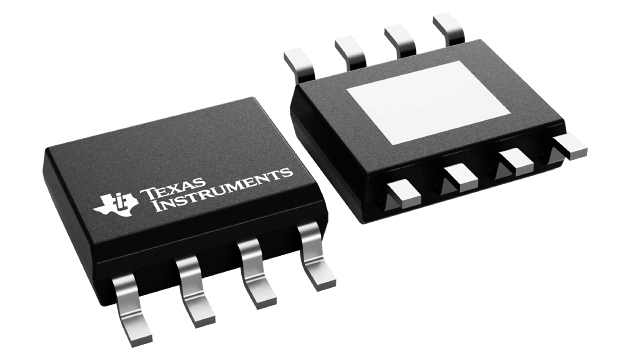

LMR33630ADDAR

PDF下载

详细信息

Functional Safety-Capable
- Documentation available to aid functional safety system design
Configured for rugged industrial applications
- Input voltage range: 3.8 V to 36 V
- Output voltage range: 1 V to 24 V
- Output current: 3 A
- 75-mΩ/50-mΩ RDS-ON power MOSFETs
- Peak-current-mode control
- Short minimum on-time of 68 ns
- Frequency: 400 kHz, 1.4 MHz, 2.1 MHz
- Junction temperature range –40°C to +125°C
- Low EMI and low switching noise
- Integrated compensation network
Low EMI and switching noise
- HotRod™ package
- Parallel input current paths
High power conversion at all loads
- Peak efficiency > 95%
- Low operating quiescent current of 25 µA
Flexible system interface
- Power-good flag and precision enable
Use TPSM53603 module for faster time to market
Create a custom design using the LMR33630 with the WEBENCH Power Designer
