产品详细信息

基本信息

BQ28Z610DRZR

PDF下载

详细信息

Autonomous battery charging control, using a dedicated MASTER mode I2C interface
Cell balancing with an internal bypass to optimize battery health
A high-side protection N-CH FET drive enables serial bus communication during fault conditions
Programmable protection levels for voltage, current, and temperature
Analog front-end with two independent ADCs
- Support for simultaneous current and voltage sampling
- High-accuracy coulomb counter with input offset error < 1 µV (typical)
Supports down to 1-mΩ current sense resistor while capable of 1-mA current measurement
Supports battery trip point (BTP) function for Windows integration
SHA-1 authentication responder for increased battery pack security
400-kHz I2C bus communications interface for high-speed programming and data access

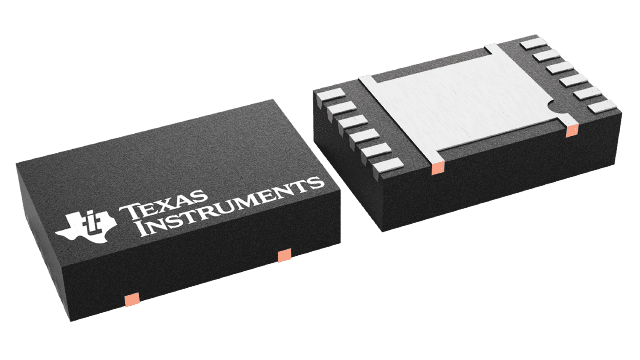

Compact 12-pin VSON package (DRZ)
