TJA1051T31J

PDF下载

详细信息

2.1 General

 ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant

 Timing guaranteed for data rates up to 5 Mbit/s in the CAN FD fast phase

 Suitable for 12 V and 24 V systems

 Low ElectroMagnetic Emission (EME) and high ElectroMagnetic Immunity (EMI)

 VIO input on TJA1051T/3 and TJA1051TK/3 allows for direct interfacing with 3 V to 5 V

microcontrollers (available in SO8 and very small HVSON8 packages respectively)

 EN input on TJA1051T/E allows the microcontroller to switch the transceiver to a very

low-current Off mode

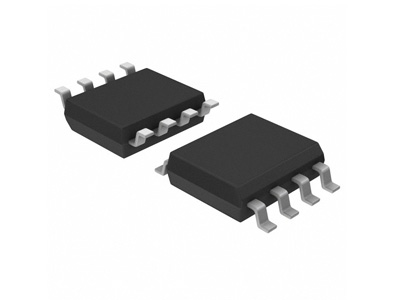

 Available in SO8 package or leadless HVSON8 package (3.0 mm  3.0 mm) with

improved Automated Optical Inspection (AOI) capability

 Dark green product (halogen free and Restriction of Hazardous Substances (RoHS)

compliant)

 AEC-Q100 qualified

TJA1051

High-speed CAN transceiver

Rev. 9 — 28 November 2017

Product data sheet

Downloaded From Oneyac.comTJA1051

All information provided in this document is subject to legal disclaimers.

Product data sheet

Rev. 9 — 28 November 2017

2 of 25

NXP Semiconductors

TJA1051

High-speed CAN transceiver

2.2 Low-power management

 Functional behavior predictable under all supply conditions

 Transceiver disengages from the bus when not powered up (zero load)

2.3 Protection

 High ElectroStatic Discharge (ESD) handling capability on the bus pins

 Bus pins protected against transients in automotive environments

 Transmit Data (TXD) dominant time-out function

 Undervoltage detection on pins VCC and VIO

 Thermally protected
